EDIAG MINI Flashed Diagzone XDIAG Version Code Reader Thinkcar Pro Thinkdiag Mini Bluetooth Scanner Automotive Diagnostic Tool


this Ediag mini hardware has been flashed and supports Diagzone software and Xdiag pro3 software.
TYPE1: Includes Diagzone version of the Ediag mini dongle and cable

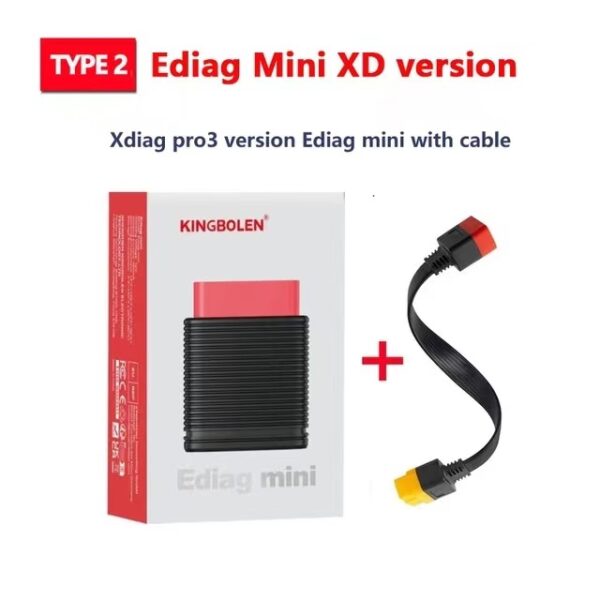

TYPE2: Includes Xdiag pro3 version of the Ediag mini dongle and cable

2023 New Arrival KINGBOLEN Ediag mini, Full System Diagnosis and All OBD2 Functions
Lifetime Free Update. Supports 15 Resets (Oil Reset, SAS Reset with 1 Year Free Update)

This Ediag mini hardware has been flashed and support Diagzone software and Xdiag pro3 software.


How to choose Ediag mini?

TYPE1:  Include diagzone version ediag mini dongle + cable

TYPE2:  Include xdiag pro3 version ediag mini dongle + cable


2023 New Arrival KINGBOLEN Ediag mini, All System Diagnosis and All OBD2

Function Lifetime Free Update. Support 15 Resets (Oil Reset, SAS Reset 1 Year Free Update)pk Mucar BT200 THINKCAR PRO THINKDIAG EASYDIAG


1* KINGBOLEN Ediag mini OBDII Connector
1* Manual


The Ediag mini supports 15 reset functions……

Support 99% Vehicle

MUCAR BT200/Bt200 Pro is compatible with most American, European, and Asian models manufactured as from 1996. It supports all OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM and CAN (Controller Area Network). If you don’t know your car OBD2 protocols that you could check your car OBD2 connector whether 16 Pin. If yes. This goods support to your car.

1.American Car list:
Need standard obd2 and release year from 1996-now
Chrysler, Ford, GM, Jeep, Lincoln, Buick, Cadillac, Chevrolet, Dodge, HM, ect…

2.European car list:
Need standard obd2 and release year from 2000-now
Mercedes Benz, Smart, Sprinter, BMW, Volkswagen, Skoda, Audi, Opel, Lamborghini, Porsche, Maybach, Ford, Land Rover, Jaguar, Aston Martin, Bentley, Rolls-Royce, Rover, Mini, Vauxhall, DR, Ferrari, Fiat, Abarth, Lancia, Alfa Romeo, Maserati, Bugatti, Peugeot, Citroen, Renault, Saab, Volvo, GM, GMSA, Dacia ,Seat, ect …

4. Japanese / Korean car list:
Need standard obd2 and release year from 2008-now
Honda, Acura, Toyota, Scion, Lexus, Mazda, Nissan, Infiniti, Isuzu, Daihatsu, Suzuki, Mitsubishi, Subaru, Samsung, Daewoo, Hyundai , Kia, ect …

5. Chinese car list:
Need standard obd2 , and release year from 2014 -now
Great Wall, Huachen, DF Honda ,Lifan, ect …

Note:Before place order please check compatibility first. send your car brand model and release year to seller.

for example(Audi,A3, 2020)

Support 12 Languages

English French Spanish German Italian Portuguese Japanese Russian Polish Turkish Greek Traditional Chinese

How to use KINGBOLEN Ediag mini?

1. Download and install the APP ”Ediag app” in Google Play or your smartphone and sign up for a new account And log in.

2. Activate the device in APP” Ediag app”, binding serial number;

3. Plug the KINGBOLEN Ediag mini dongle into the vehicle’s 16 pin OBD2 Data Link Connector and then turn on your vehicle.

4. Tap Me/Setting button of your device to bluetooth pair the Ediag mini with your device.

5. Start to diagnose your car.

Support Mobile Phone & Tablet Computer

Android: 4.0, IOS: 9.0

KINGBOKEN Ediag Mini OBD2 Diagnostic Tool is suitable for Mobile phones, tablet computer that meet the above version information. When the adapter is connected to the car, you only need to detect and diagnose your vehicle through the mobile phone’s Bluetooth 4.2 and APP. It is suitable for most DIY car owners and maintenance and repair car stores on the market.

Ediag mini is displayed on the app page

Support Vehicles Diagnostic Report

1. Generate diagnostic report in Ediag APP.
2. Download the diagnosis report and transfer it to the computer to print the diagnosis report.
3. Share your diagnosis report with your partner or car owner.

Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

Auto Scan Car VIN Code

Thinkdiag can automatically scan the car’s information, include VIN number, release year, model and engine type.Save your time

Lifetime free All 10 Mode OBDII/EOBD Functions

Supported models: compatible with all models supporting OBD II protocol after 1996

supporting agreement: ISO 14230-4(KWP2000)/IOS 15765-4(CAN)/ISO 9141-2(IOS)/ISO14229(UDS)/SAEJ 1850(VPW&PWM)”

Mode 1: Read live data stream
Mode 2: Read freeze frame data
Mode 3: Read DTCs(diagnostic trouble codes)
Mode 4: Clear dtcs
Mode 5: Oxygen sensor monitoring
Mode 6: System monitoring
Mode 7: Read pending DTCs
Mode 8: Control operation of on-board system
Mode 9: Read vehicle information
Mode 10: Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.

1. Oil Lamp Reset Service:
allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2. EPB Service:
it is important in the maintenance of electronic braking system’s safety and efficiency.

3. BAT Battery Service:
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4. DPF Service:
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5. SAS Service:
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6. TPMS Service:
Makes sense in displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors.

7. IMMO Key Programming:
The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8. ABS Bleeding:
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system

9. Sunroof Reset:
The sunroof memory generally needs to be reset when the vehicle’s battery is replaced or the car dies

10. Suspension Reset:
Try reset electronic suspension air ride with the massage system close all doors koeo flip through measage system go to suspension reset or on off

11. Gearbox Reset:
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programing method of the TCU / ECU drive the car.

12. AFS Headlamp Reset:
‘AFS’ means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don’t turn when you turn the steering wheel

13. Injector Coding:
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off

14. Throttle Adaptation:
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair

15. Gear Learning:
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running

Ediag mini supports 15 Reset functions:

All Cars Lifetime Free Full System Diagnostic

The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis.The application performsfunctional tests, retrieves vehicle diagnostic information, such as trouble and event codes and live data for various vehicle control systems, such as ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper Systemetc.

Why Do You Need KINGBOLEN Ediag MINI OBD2 Scanner?

1. Mobile APP Bluetooth Connection, Lightweight And Convenient

2. All systems diagnosis: All OBDII Cars Full System Diagnostic Lifetime Free, includes the engine system,ABS,SRS, TPMS………..

3. 15+Resets Service: Support 2 Resets Services Free 1 Year, Especially Support , TPMS Service, Gearbox Reset, Please Contact Customer Service To Ask If Your Car Model Supports.

4. Full OBD2 and EOBD functions: All 10 Mode OBDII/EOBD Protocol Functions After 1996 Lifetime Free. View freeze frame date,Read & Clear DTCs……….

5. Support 12 Languages: Russian, English, French, German, Spanish, Italian, Portuguese, Japanese, Polish, Turkish, Greek, Traditional Chinese.

6. Support Model: Support Diagnosis More Than 122+ Car Brand,Continuous Upgrade

Item Weight


Item Height


Item Width


Item Length


External Testing Certification


Model Name

Thinkcar pro A

Software Version

Thinkcar pro A

Hardware Version

Thinkcar pro A

Item Type

Car Diagnostic Cables and Connectors




Mainland China
