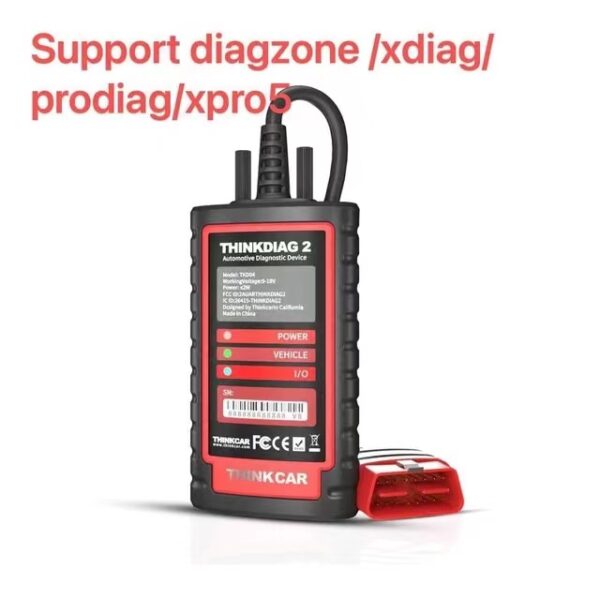

THINKCAR Thinkdiag 2 Support Diagzone XDiag Prodiag XPRO5 Software Support CAN FD Protocol All System Diagnostic PK DBScar 7 VII

Full System OE level functions

ThinkDiag 2 Enhanced diagnostic scanner can perform OE-level diagnostics on all systems,such as ABS,SRS,Engine,Transmission,Wiper,Seat,EPB,TPMS,Body System,AWD,Door Lock System, Battery,ESP, Parking Sensor, Cruise Control, Instrument, etc.

What Function support?

ECU Coding (Customize)

Uses the ThinkDiag 2 App to modify the adaptive data for vehicle control modules, after repairs or replacements of vehicle parts including:
[ Power Window | Illuminated Entry | Warning | Light Control | Slide Roof | Air Conditioner | Display | Unit Conversion | Entry & Start | PSD & PBD Operation | Seat … ]

Active Test (Bi-directional control)

Uses the ThinkDiag 2 App to test if the actuator is normal, without using the vehicle’s controls, to get a significant boost in effectiveness:
[ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]

Support 16+ Maintenance Functions:

1.Oil Reset Service
2.Steering Angle Calibration
3.Electronic Parking Brake Reset
4.Battery Register & Battery Maintenance
5.ABS Bleeding
6.Electronic Throttle Position Reset & Learn
7.Diesel Particulate Filter (DPF) Regeneration
8.Tire Pressure Monitor System Reset
9.Gear Learning
10.Anti-theft Matching
11.Injector matching
12.Air Suspension Reset
13. Gearbox Reset
14.Sunroof RESET
16.AFS Reset
16.EGR Reset

Support 10 OBD2 Full Function

This diagnostic software can test vehicle Engine systems.All models with engine meeting SAE J1850,ISO9241-2,ISO14230-4,ISO15765 Standard in OBD2&EOBD.

1.View freeze frame date
2.support graph data stream
3.O2 Sensor test
4.Evap system test
5.On-Board monitor test
6.Read & Clear DTCs
7.Identify VIN information
8.DTC code look up
9.Turn off MIL(Malfunction Indicator Lights)
10.I/M Readiness status test

4 Data display in 1 Graph

Thinkdiag 2 will Read vehicle’s live data, and present by graph. Optional combination of multiple data.

Auto Scan Car VIN Code

Thinkdiag 2 can automatically scan the car’s information, include VIN number, release year, model and engine type.

Print the vehicles report

support do a OBD vehicles diagnostic report, and print the vehicles report from pc it help you to understand car’s problem.and make you know how to repair car.

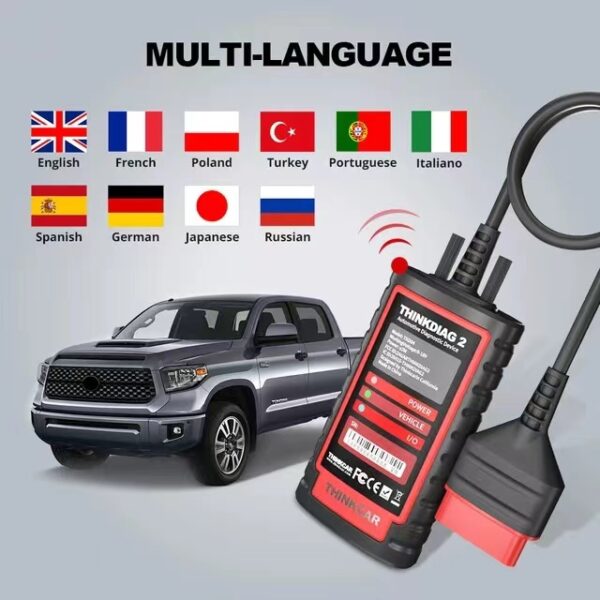

Support ISO and Bluetooth and Android

What’s More?

1.Auto Detect car’s vin in 1o seconds
2.Support printed car health report
3.Remote Diagnosis
4.Community support

How to Operate ThinkDiag 2 When get ?

Step 1 : Download ThinkDiag App from Google play / App store
Step 2 : Register & Login
Step 3 : Active Thinkdiag 2 ( the serial number is in the back of Thinkdiag 2 , the password is in the white sticker in manual book )
Step 4 : Go to download All softwares
Step 5 : Connect Thinkdiag 2 to car , go to read the VIN , it will diagnose !

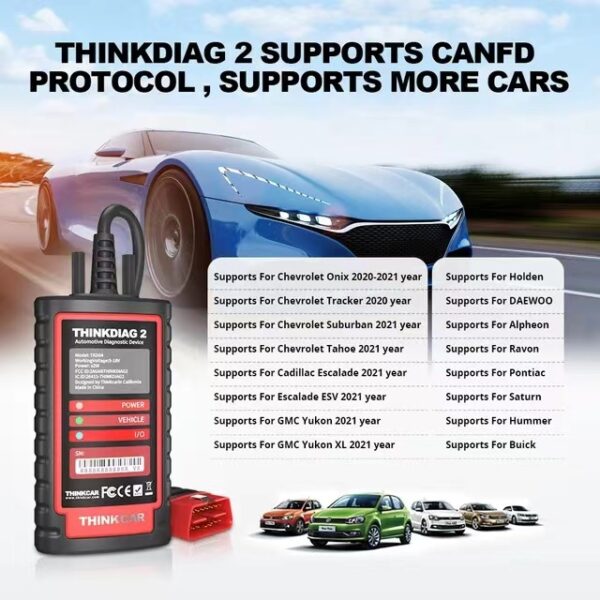

Support 95% Car Modles (Cover 115 Brands, and Counting)

For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with following protocols:
-ISO 14230-4 (KWP2000)
-ISO 15765-4 (CAN)
-ISO 9141-2 (iso)
-ISO 14229 (uds)
-SAE J1850 (VPW & PWM)
-Original protocols of makers
For advanced functions as active test, all system diagnostics, and maintenance service, it covers 95% of car models available in the market including:

-Asia:
for D-aewoo, for H-oda, for JP Isuzu, for K-ia, for M–da, for Mit-subishi, for N–an, for SGM, for Su-baru, for S-uzuki, for T-o-ta,for H-undai, for Ssa-ngyong
-Europe:
for A-ston Martin, for A-di, for B–z, for B-W, for C-itroen, for F–rrari, for F-at, for L-and Rover, for M-aserati, for O-pel, for P-rsche, for can clip, for R-ver, for Sa-ab, for S-eat, for S-koda, for S-mart, for Sprinter, for V*-o, for V-W, for P-eugeot
-America:
for Chrysler, for USA-F–d, for G-M
And keep updating.

Parameter :

Bluetooth: hardware supports 5.0BLE, Bluetooth dual mode
Diagnostic interface: DB15
Working voltage: 12V
Working temperature: -10℃~50℃
Storage environment: ﹣20-60℃
Overall size: 120.5mm*65mm*29mm
Shell material: ABS+PC+TPU rubber sleeve
Lenth of obd Cable : 0.65 meter

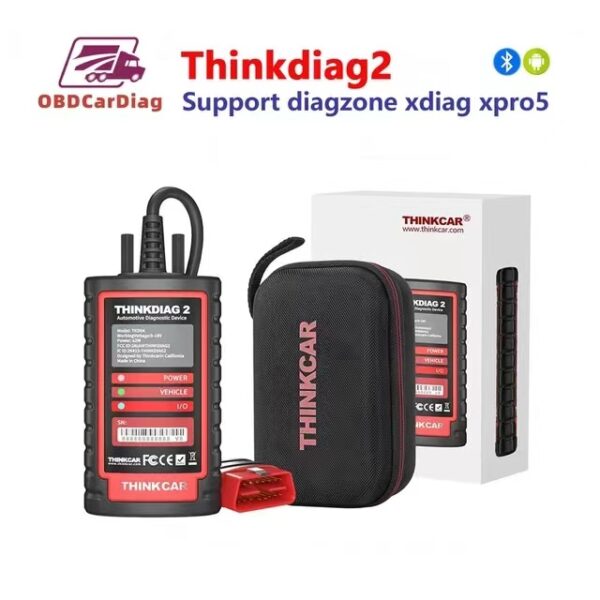

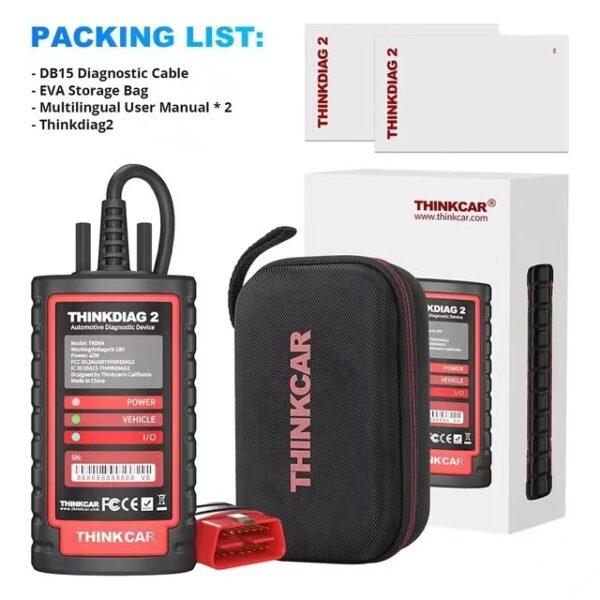

Packing List

1.THINKDIAG 2 OBD2 Scanner
2.User Manual

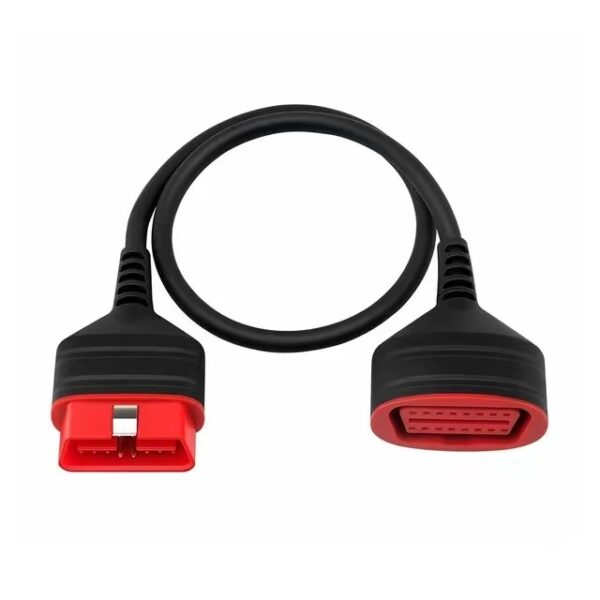

3.OBD2 Diagnostic Cable
4.EVA Storage Bag
